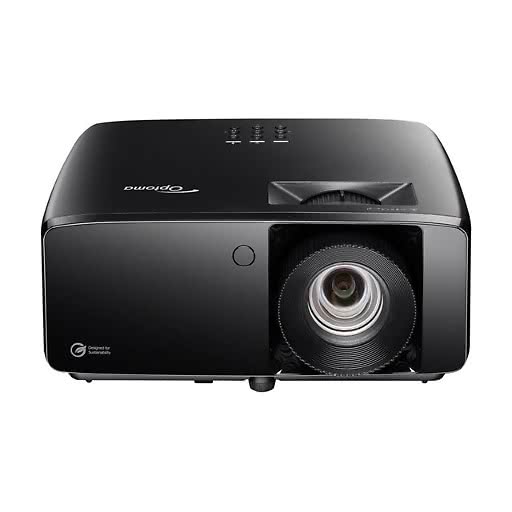

Optoma UHZ67 – 4K UHD Laser Projector for Larger Golf Simulator Rooms

The Optoma UHZ67 is built for golfers who want 4K UHD detail (3840 × 2160) on the impact screen and have the room depth to place the projector further back. A 4,300-lumen laser light source delivers a bright image with up to 30,000 hours of service life, without lamp replacements.

With a throw ratio of 1.4–2.24:1 and 1.6x manual zoom, the UHZ67 needs more distance than a short throw projector: a 3-metre-wide image requires roughly 4.2–6.7 metres. The zoom range makes it easier to match the image to your screen size, and horizontal and vertical keystone correction (±30) fine-tunes the geometry.

Two HDMI inputs, LAN, RS-232 and a 12 V trigger make the projector straightforward to integrate into a dedicated simulator room or home cinema setup. IP6X dust protection, a sync rate of up to 240 Hz and support for aspect ratios up to 32:9 make the UHZ67 a versatile choice for both golf simulation and films.

Technical Specifications & Features

• • 4,300 lumens, 4K UHD (3840 × 2160), 16:9, supports 4:3, 16:10, 21:9 and 32:9



• • Laser light source, up to 30,000 hours, IP6X



• • Throw ratio 1.4–2.24:1, 1.6x manual zoom, projection distance 0.9–9.3 m, image size 76–762 cm



• • Vertical and horizontal keystone correction ±30, 360-degree projection, 3D support



• • 2 × HDMI, 2 × USB-A, LAN (RJ-45), RS-232, 12 V trigger, 3D Sync, 3.5 mm audio out, built-in 15 W speaker



• • Dimensions 27.4 × 21.6 × 11.4 cm, weight 2.9 kg
