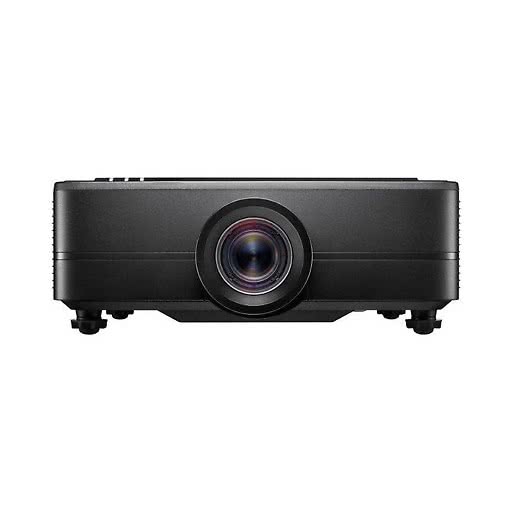

Short-Throw Laser Projector for Golf Simulators – Optoma ZU820TST

The Optoma ZU820TST is a short-throw laser projector for golf simulator venues and bright rooms where the image has to stay clear session after session. With 8100 lumens and a 0.75–0.95:1 throw ratio, it projects a 3 m wide image from roughly 2.3–2.9 m away, so it can be mounted close to the screen and out of the player’s line.

WUXGA resolution in 16:10 suits tall impact screens, and the DuraCore laser light source delivers up to 30,000 hours with an IP5X dust-resistant optical engine rated for 24/7 operation. Motorised zoom, focus and lens shift plus four-corner correction make alignment quick after mounting.

Note: the projector weighs 14 kg – choose a ceiling mount rated for at least that load.

Technical Specifications & Features

• • 8100 lumens, WUXGA 1920 × 1200, 16:10, dynamic contrast 3,000,000:1



• • Throw ratio 0.75–0.95:1, projection distance 0.81–6.13 m, image 50–300"



• • Motorised zoom (1.26x), focus and lens shift, keystone ±30° and four-corner correction



• • DuraCore laser up to 30,000 h, IP5X dust-resistant engine, 24/7 and 360° installation



• • Inputs: 2 × HDMI 2.0, HDBaseT, VGA – 4K and HDR signal compatible



• • 2 × 10 W speakers, 27 dB (eco), 48.6 × 39.45 × 17.6 cm, 14 kg
